پارت نامبر: PMP75-ABR1P61TDDAA

وزن تقریبی حمل: 2 کیلوگرم

معرفی:

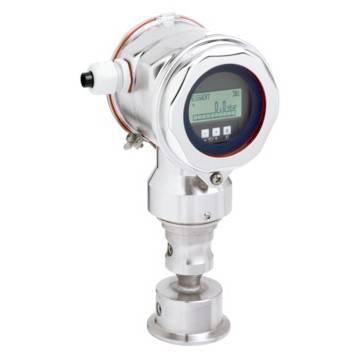

The Cerabar PMP75 digital pressure transmitter with metal diaphragm seal is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids or gases. Suitable for high pressure as well as extreme process temperature applications from -70 up to +400°C (-94 to 750°F). Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. Designed according to IEC 61508 for use in SIL2/3 safety applications.

مشخصات:

• A Approval: Non-hazardous area
• B Output; Operating: 4-20mA HART; inside + LCD
• R Housing; Cover Sealing; Cable Entry: T17 316L hygiene IP66/68 NEMA6P;EPDM;M20 gland, T17 = side cover
• 1P Sensor Range; Sensor Overload Limit: 10bar/1MPa/150psi gauge; 40bar/4MPa/600psi
• 6 Calibration; Unit: Sensor range; psi
• 1 Membrane Material: 316L
• TD Process Connection: Tri-Clamp ISO2852 DN51 (2"), 316L, EHEDG, 3A
• D Transmitter Mounting; Fill Fluid: Direct; Vegetable oil
• A Additional Option 1: Not selected
• A Additional Option 2: Not selected

ویژگی‌ها:

• Large variety of different process connections and membrane materials
• New TempC Membrane minimizes influences of ambient and process temperature fluctuations
• HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
• Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
• Highest safety due to gastight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
• Cost savings with modular concept for easy replacement of sensor, display or electronics
• Overload-resistant and function-monitored from the measuring cell to the electronics

سایر پارت نامبرها:

برای سفارش سایر مدل‌ها و پارت‌نامبرها می‌توانید درخواست خود را به همراه کد مورد نظر از بخش استعلام پیگیری نمایید.

فایل‌های مرتبط:

دریافت دیتاشیت
(Technical Information_Cerabar S PMC71 PMP71 PMP75_Process pressure measurement)
(حجم فایل: 3.2 مگابایت)
