پارت نامبر: PMP55-AA12QA1PGBT7JA4A

وزن تقریبی حمل: 2 کیلوگرم

معرفی:

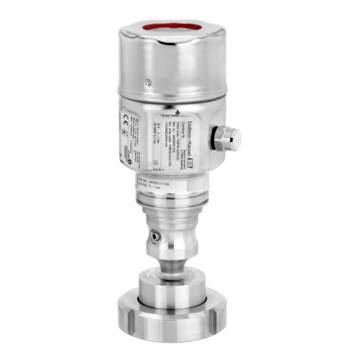

The Cerabar PMP55 digital pressure transmitter with metal diaphragm seal is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids. Suitable for high pressure as well as extreme process temperature applications from -70 up to +400°C (-94 to 750°F). Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 and IEC 61511.

مشخصات:

• AA Approval: Non-hazardous area
• 1 Output: 4-20mA
• 2 Display, Operation: W/o LCD, push button on electronics
• Q Housing: F15 stainless steel hygiene
• A Electrical Connection: Gland M20, IP66/68 NEMA4X/6P
• 1P Sensor Range: 10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O overload: 40bar/4MP/600psi
• G Reference Accuracy: Standard
• B Calibration; Unit: Sensor range; mbar/bar
• T7J Process Connection: SMS 1-1/2" PN25, 316L, EHEDG, 3A
• A Membrane Material: 316L
• 4 Fill Fluid: Vegetable oil, FDA
• A Diaphragm Seal Connection: Direct

ویژگی‌ها:

• Large variety of different process connections and membrane materials
• New TempC Membrane minimizes influences of ambient and process temperature fluctuations
• Easy menu-guided commissioning via on-site display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
• For process pressure monitoring up to SIL2, certified to IEC 61508 and IEC 61511
• Modular concept for easy replacement of display or electronics
• Seamless and independent system integration (HART/PA/FF)

سایر پارت نامبرها:

برای سفارش سایر مدل‌ها و پارت‌نامبرها می‌توانید درخواست خود را به همراه کد مورد نظر از بخش استعلام پیگیری نمایید.

فایل‌های مرتبط:

دریافت دیتاشیت
(Technical Information_Cerabar M_PMC51 PMP51 PMP55_Process pressure measurement)
(حجم فایل: 5.2 مگابایت)
