پارت نامبر: PMD75-AAC7LE1DA4U

وزن تقریبی حمل: 2 کیلوگرم

معرفی:

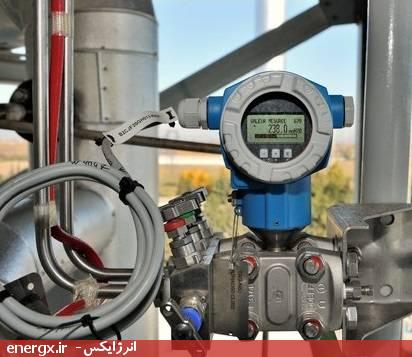

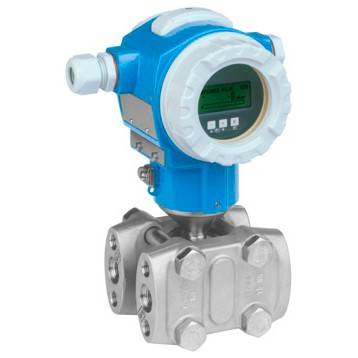

The Deltabar PMD75 differential pressure transmitter with with piezoresistive sensor and welded metallic membrane is used in all industries for continuous measurement in liquids, vapours and gases. The 3-key operation enables simple and reliable commissioning and operation. The integrated HistoROM data module allows easy management of process and device parameters. Designed according to IEC 61508 for use in SIL2/3 safety applications.

مشخصات:

• A Approval: Non-hazardous area

• A Output; Operating: 4-20mA HART; extern + LCD

• C Housing; Cover Sealing; Cable Entry: T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover

• 7L Nominal Range; Cell Material; PN: 16bar/1.6MPa/240psi; 316L; 160bar/ 16MPa/2400psi

• E Calibration; Unit: Customised pressure

• 1 Membrane Material: 316L

• D Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L

• A Seal: FKM Viton

• 4 Additional Option 1: EN10204-3.1 pressure test, inspection certificate

• U Additional Option 2: Mounting bracket, wall/pipe, 304, heavy duty design

ویژگی‌ها:

• Best accuracy, reproducibility and long-term stability

• Highest safety due to gastight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
• Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION
• FieldbusHistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

• Cost savings with modular concept for easy replacement of sensor, display or electronics
• Overload-resistant up to 420bar / 42MPa / 6300psi, function-monitored
• Seamless and independent system integration (HART/PA/FF)

سایر پارت نامبرها:

برای سفارش سایر مدل‌ها و پارت‌نامبرها می‌توانید درخواست خود را به همراه کد مورد نظر از بخش استعلام پیگیری نمایید.

فایل‌های مرتبط:

دریافت دیتاشیت
(Technical Information_Deltabar S PMD75, FMD77, FMD78_Differential pressure measurement)
(حجم فایل: 4 مگابایت)
