پارت نامبر: PMD55-AA21BD67HGCHAJA1A+PB

وزن تقریبی حمل: 2 کیلوگرم

معرفی:

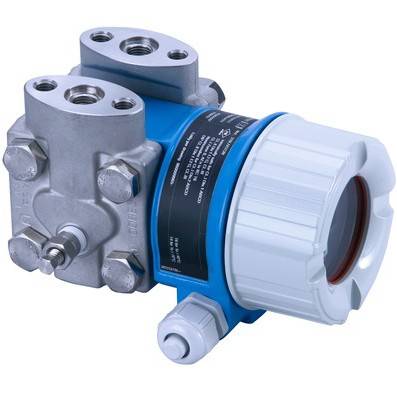

The Deltabar PMD55 differential pressure transmitter with piezoresistive sensor and welded metallic membrane is typically used in process or environmental applications for continuous measurement of pressure differences in liquids, vapours and gases. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.

مشخصات:

• AA Approval: Non-hazardous area
• 2 Output: 4-20mA HART
• 1 Display, Operation: LCD, push button on display/electronics
• B Housing: F30 Alu, glass window
• D Electrical Connection: Thread NPT1/2, IP66/67 NEMA4X/6P
• 6 Nominal Pressure PN: 70bar/7MPa/1015psi
• 7H Sensor Nominal Value: 3bar/300kPa/45psi
• G Reference Accuracy: Standard
• C Calibration; Unit: Nominal value; kPa/MPa
• HAJ Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L, V1 Installation impulse line vertical
• Alignment 90deg
• A Membrane Material: 316L
• 1 Fill Fluid: Silicone oil
• A Seal: FKM Viton
• PB >>Accessory Enclosed: Mounting bracket, wall/pipe, 304, heavy duty design

ویژگی‌ها:

• Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
• Easy process adaptation to impulse line high-pressure/low-pressure change via electric switch on the main electronics
• Compact design and modular concept for easy replacement of display or electronics
• Process pressure up to SIL2, certified to IEC 61508 and IEC 61511
• Global usage thanks to the widest range of approvals for industries and applications

سایر پارت نامبرها:

برای سفارش سایر مدل‌ها و پارت‌نامبرها می‌توانید درخواست خود را به همراه کد مورد نظر از بخش استعلام پیگیری نمایید.

فایل‌های مرتبط:

دریافت دیتاشیت
(Technical Information_Deltabar M PMD55_Differential pressure measurement)
