پارت نامبر: PMC51-AA21RD2PGFTDJK

وزن تقریبی حمل: 2 کیلوگرم

معرفی:

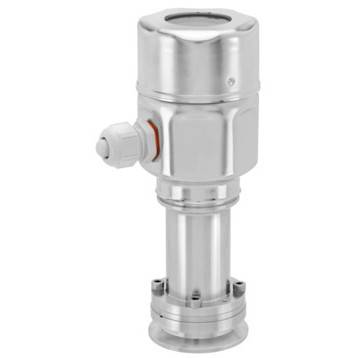

The Cerabar PMC51 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.

مشخصات:

• AA Approval: Non-hazardous area
• 2 Output: 4-20mA HART
• 1 Display, Operation: LCD, push button on display/electronics
• R Housing: F15 stainless steel hygiene, glass window
• D Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
• 2P Sensor Range: 10bar/1MPa/150psi abs, 100mH2O/333ftH2O/4000inH2O abs overload: 40bar/4MPa/600psi
• G Reference Accuracy: Standard
• F Calibration; Unit: Sensor range; psi
• TDJ Process Connection: Tri-Clamp ISO2852 DN40-51 (2"), 316L, DIN32676 DN50, EHEDG, 3A with seal FDA
• K Seal: EPDM, FDA, 3A Class II, USP Class VI, DVGW, KTW, W270, WRAS, ACS, NSF61

ویژگی‌ها:

• Best fit for vacuum applications and applications with corrosive and abrasive media
• Process safety through membrane breakage detection
• Overload-resistant high purity ceramic sensor (99.9% Al2O3)
• Condensation resistant also for hygienic applications
• Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
• Process pressure up to SIL2, certified to IEC 61508 and IEC 61511
• Modular concept for easy replacement of display or electronics

سایر پارت نامبرها:

برای سفارش سایر مدل‌ها و پارت‌نامبرها می‌توانید درخواست خود را به همراه کد مورد نظر از بخش استعلام پیگیری نمایید.

فایل‌های مرتبط:

دریافت دیتاشیت
(Technical Information_Cerabar M_PMC51 PMP51 PMP55_Process pressure measurement)
